Fairline Phantom 41 Reduced

• Co-ordinating carpets, upholstery and curtain fabrics
• Joinery and woodwork in Teak and Afromosia, or Crown Ash

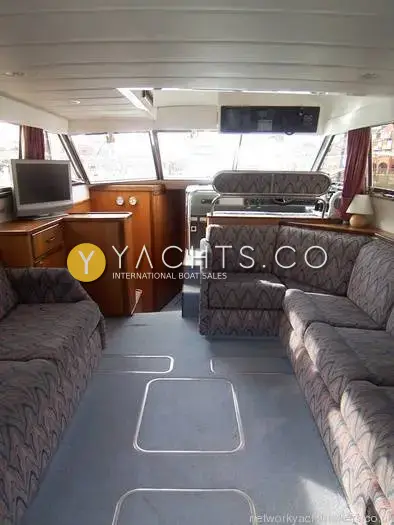

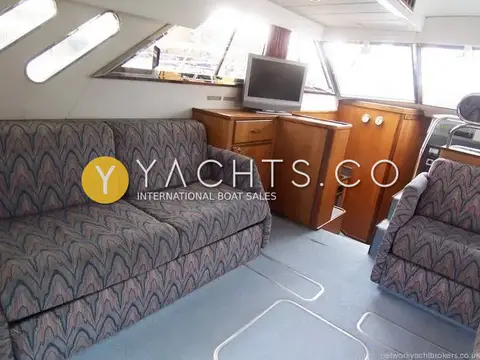

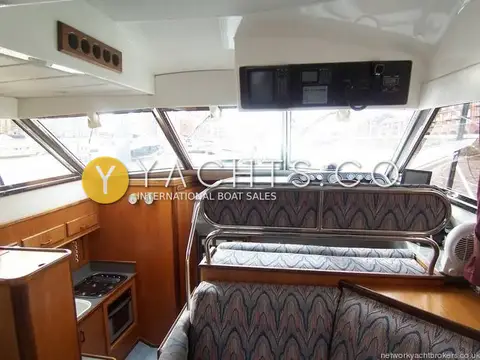

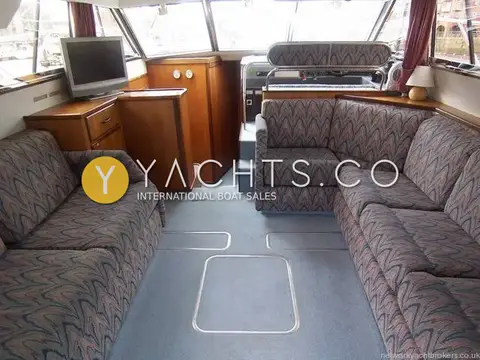

• MAIN SALOON
• Dimensions 9ft 1in × 10ft
• Headroom 6ft 3in
• Sideboard to port, incorporating bar with 2 nesting stools and 12/240v refrigerator

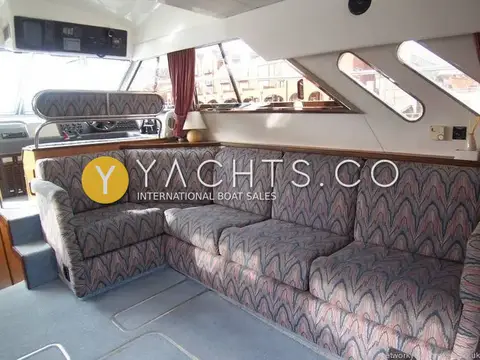

• L-shaped settee to starboard with adjustable height table
• Large stainless steel framed, opening windows
• White anodised framed sliding doors to cockpit
• External sunblind’s to windscreen
• 4 ceiling lights

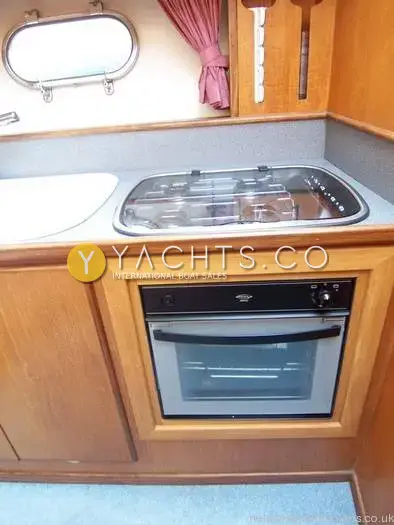

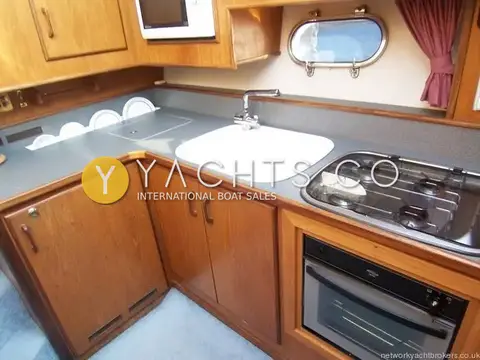

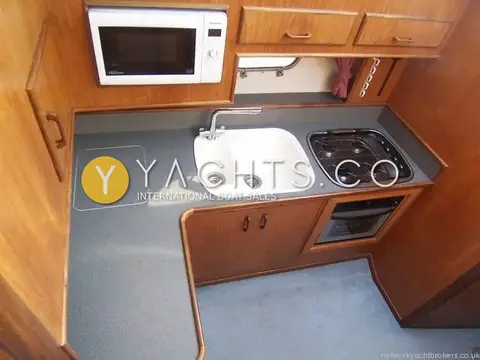

• GALLEY
• Three burner gas hob, oven and grill
• 3cu.ft refrigerator with automatic 12v/240v changeover
• Twin sinks with hot and cold water
• Chopping board cover to sinks
• Laminate worktop
• Opening stainless steel porthole
• Concealed lighting
• Fire extinguisher
• High level cupboards, draws, cutlery drawer and crockery racks

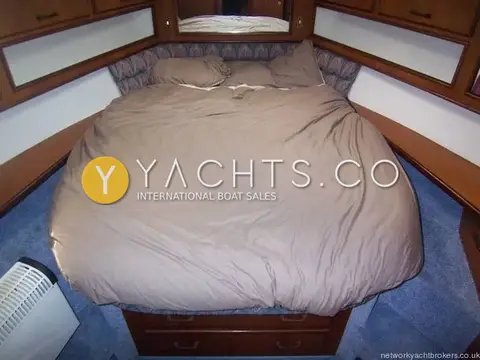

• FORWARD STATEROOM
• 6ft 6in × 6ft double bed with 6in mattress
• Upholstered bed-head
• Full height wardrobe
• Chest of drawers
• Dressing table
• Low and high level lockers
• 2 ceiling and 2 reading lights
• Escape hatch to forward deck
• Two opening stainless steel portholes
• Full length mirror
• Door to en-suite shore/toile

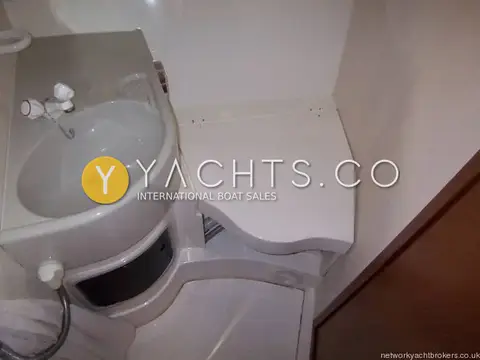

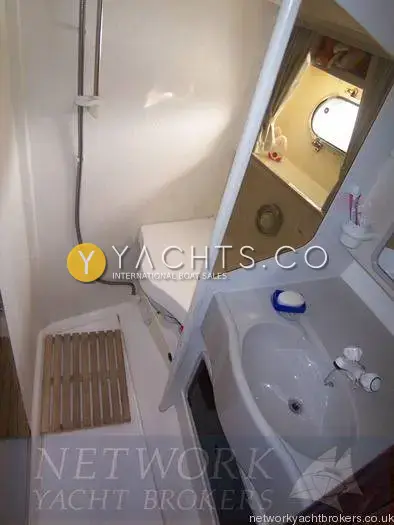

• EN SUITE SHOWER/WC COMPARTMENT
• Vanity unit with basin, hot and cold water
• Cupboards and high level lockers
• Halogen overhead and vanity lights
• 240V shaving point
• Towel and toilet paper holders
• Toothbrush and glass holder
• Hooks
• Mirror
• Hot and cold water shower
• Shower curtain
• Automatic shower tray pump out system
• Sea toilet with seacock’s to outlet and inlet
• GUEST CABIN
• Two 6ft 6in × 2ft 3in single berths with 6 in mattresses
• Upholstered bed heads
• Wardrobe and bedside table
• Stowage drawers and lockers

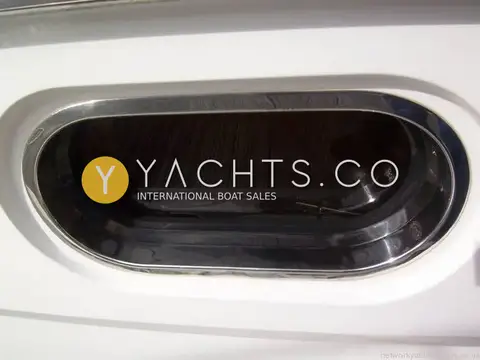

• Two opening stainless steel oval portholes

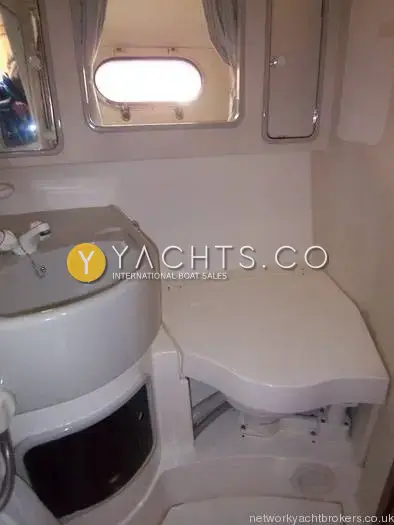

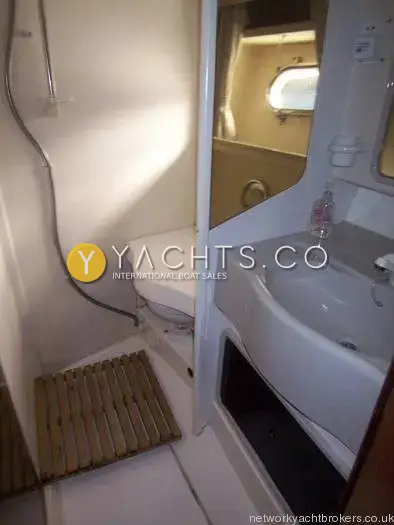

• GUEST SHOWER/WC COMPARTMENT
• 240v shaving point towel and toilet paper holders
• Opening stainless steel oval porthole
• Sea toilet with seacock’s and outlet and inlet
• Doors to guest cabin and to companionway

Full engine instrumentation including: tachometers, oil pressure gauges, temperature gauges and battery condition indicators, audible alarms and engine hours meters

12 volt, 21 × 200 a.h. batteries wired in parallel supplying domestic services and port engine starting (domestic batteries accept charge from both engines), 1 × 175 a.h battery exclusively for starboard engine starting, emergency battery coupling system permits starboard engine battery to start port engine if domestic batteries accidentally discharged), 80 a.h. circuit beaker for anchor winch

• Designed by Bernard Olesinski and the Fairline design team

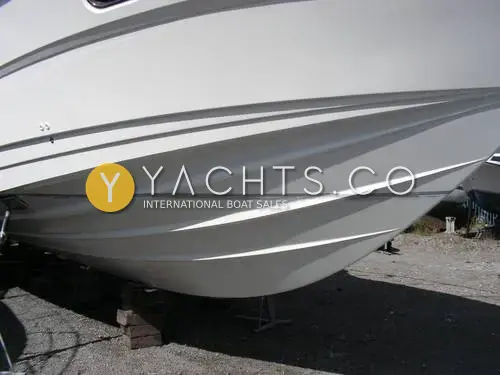

• Deep ‘V; forward
• 190 deadrise aft
• Full length moulded spray deflectors
• Gelcoat backed by resin-rich power-bound mat to combat osmosis
• All gelcoat and glassfibre laid up by hand, with unidirectional and woven rovings
• Transverse and longitudinal strengthening stringers throughout hull
• Hull/deck joint bolted and bonded

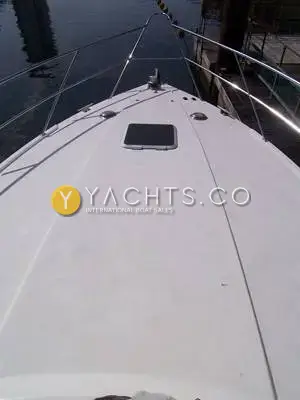

• DECK.
• Stainless steel stem head roller
• Twin bow, spring and stern cleats
• Stainless steel pulpit and pushpit
• Stainless steel side handrails and flybridge grab rails
• Stainless steel rubbing strake.
• Full set of IMCO navigation lights
• Riding light
• Water and fuel filters (2)
• Cockpit light
• Moulded non-slip deck surface

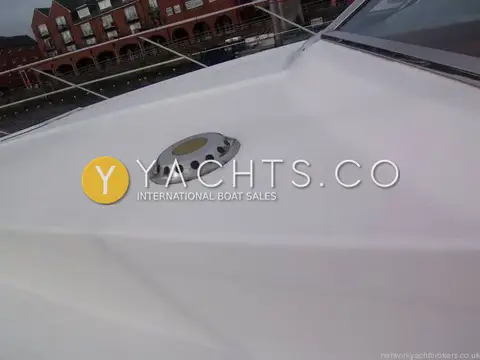

• Deck vents to all cabins and toilets
• Integral bathing platform with transom ladder
• Transom fender stowage

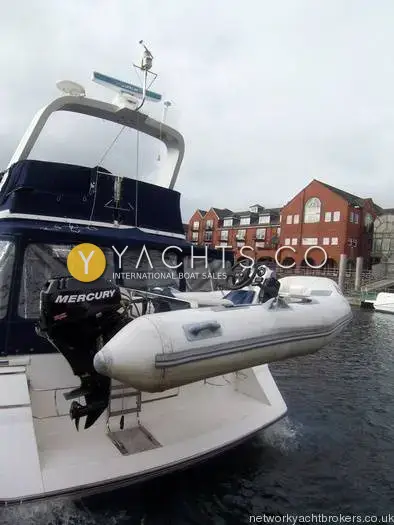

• Stainless steel davits with winches

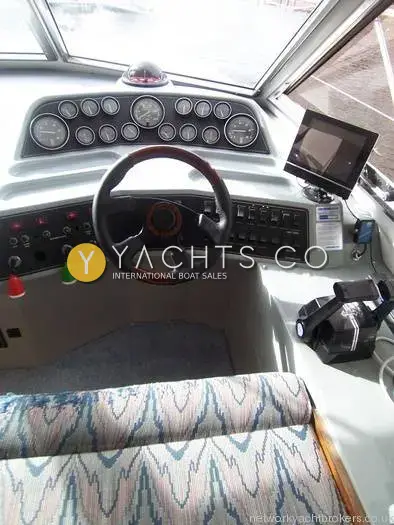

• MAIN HELM POSITION
• Double hem seat
• Hydraulic steering
• Windscreen wipers and washers
• Twin, single-leaver throttle and gear controls
• Speedometer and distance log
• Trim tab controls
• Remote anchor winch controls
• Helm position indicator
• Chart table and light
• Chart stowage
• Fuel contents gauge
• Domestic water contents gauge
• Control panel for 12/240v domestic electrical circuits
• Individual circuit breakers and switches for navigation and riding lights, windscreen wipers, bilge pump and engine bay extractor fan

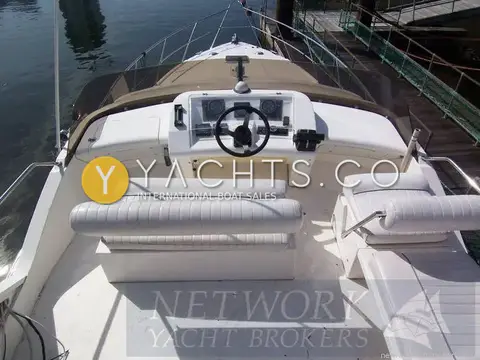

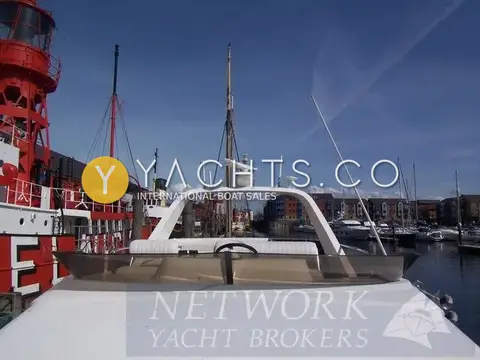

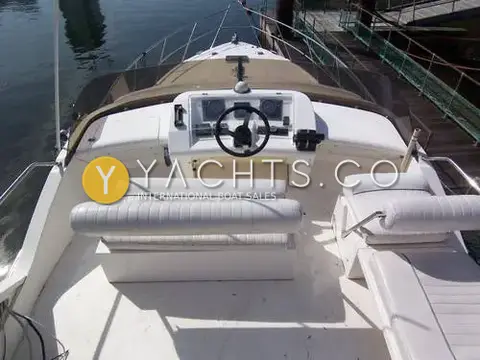

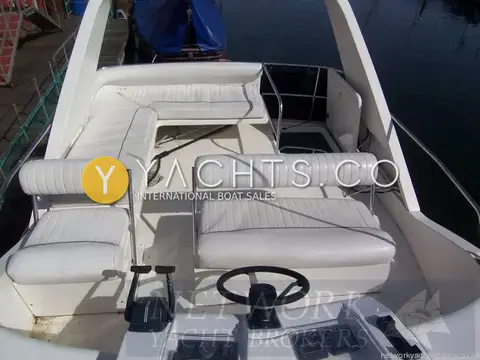

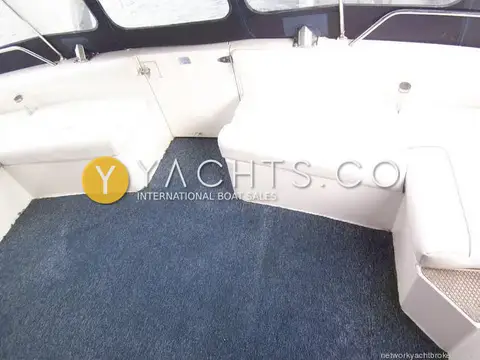

• FLYBRIDGE & SECOND HELM POSITION
• GRP access hatch
• Hydraulic steering duplicate engine controls

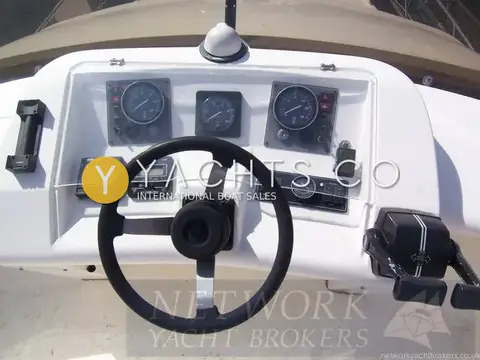

• Duplicate engine instruments
• Compass
• Echo sounder and speedometer/log repeaters
• Reversible helm seats

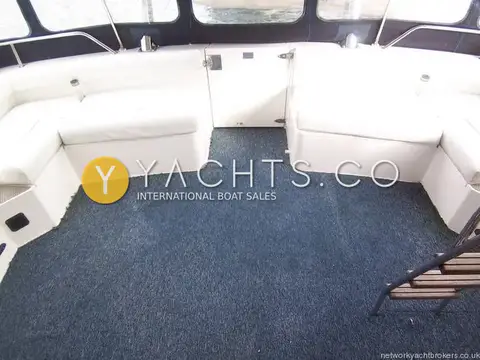

• L-shaped upholstered seating/ sunbathing area
• White PVC instrument and helm seat cover
• Stainless steel guard rails
• GRP arch for optional radar
• Glove locker
• Moulded no-slip floor surface
• Moulded acrylic wind deflecting screen

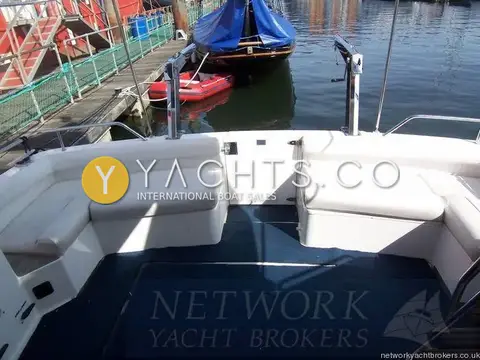

• AFT COCKPIT
• Self-draining
• Moulded non-slip floor
• Full width cushioned rear seat
• Transom gate to bathing platform
• Access hatch to large stowage hold
• Stainless steel access ladder to flybridge
• Self draining wet locker.
• Powered by twin Caterpilar 3208 425hp (800 hours) on shafts
• Engine room soundproofing
• Water cooled engine exhausts and silencers
• Aerodynamically designed engine air intakes
• Automatic engine bay fire extinguishers
• Stainless steel shafts (TEMET)
• 4 blade contra-rotating Nickel Aluminium bronze propellers
• Nickel Aluminium Bronze ‘P’ brockets
• Balanced rudders
• Catholic protection
• Automatic bilge pumps for engine bay and rudder bay with manual ‘on’ override
• Fore and aft bulkheads
• Emergency manual bilge pump system
• Engine manufacture’s handbook and tools
• Electric engine bay blower and extractor fans
• Engine bay light
• Seacock’s on all inlets/outlet below water line
• FUEL SYSTEM
• Twin 16 gallon fuel tanks
• Changeover valve systems to permit each engine to draw from and return fuel to, wither tank
• Individual fillers and vents
• Aircraft grade fuel filler and vent popes
• Copper fuel lines
• High capacity water separators and fuel filters on diesel installations
• FRESHWATER SYSTEM
• 2 × 57 gallon stainless steel water tanks
• 16 gallon Calorifier hot water system
• 1kw 240v immersion heater
• Automatic, pumped and filtered pressurised supply
• ELECTRICAL SYSTEMS
• All 240 volt and 12 volt circuits protected by circuit breakers on maim electrical load control panel in saloon
• Isolating switches to all batteries
• Wiring diagrams provided in owners handbook
• 240 volt
• 240v shore power supply, socket outlets in saloon, galley and cabins, spare circuit breakers for optional equipment
• All stern gear, engines, fuel tanks ect. Electrically bonded
• GAS
• Gas bottles stowed in self-venting cockpit locker
• Copper, polythene sheathed supply pipe
• Double tail feed with regulator
• All gas burners fitted with flame failure protection devices

• Full Cat engine service spares kit
• Exhaust Tem Monitoring system and fly bridge repeater
• MLR FX312 GPS & flybridge repeater
• Simrad Shipmate CP32 Colour Plotter/GPS
• Garmin GPS 50 Fixed/Handheld GPS
• Shipmate R58300 VHF &Flybridge repeater
• Stowe Navsounder/depth recorder & flybridge repeater
• Echo sounder with audible shallow and deep water alarms
• Multi channel VHF radio telephone
• Stereo radio/cassette player with saloon and flybridge speakers
• Intercom from lower helm to forward deck.
• Equipment
• Reversible 1000 watt electric anchor winch
• Electro-hydraulic trim tabs with catholic protection
• 55lb anchor
• 15 fathoms calibrated chain
• 8 fenders
• Boathook
• Searchlight
• Twin horns
• Foghorn with siren and loud hailer facility
• Lifebuoy in quick release holder
• Ensign and staff
• 4 × 40ft mooring warps
• Antifouling
• Hot and cold water transom shower
• Blue cockpit shower
• Clock and barometer set
• logbook
• Canvas dodgers to rails (new 2004)
• Fly bridge cover (new 2004)
• Cockpit cover (new 2004)
• Whittle stainless davits
• U6 man Canister Life Raft
• Fire blanket in galley
• Full offshore flare pack
• Lifebuoy & auto light
• Rope Cutters
• Radio/CD to saloon and flybridge
• Brass clock and Barometer
