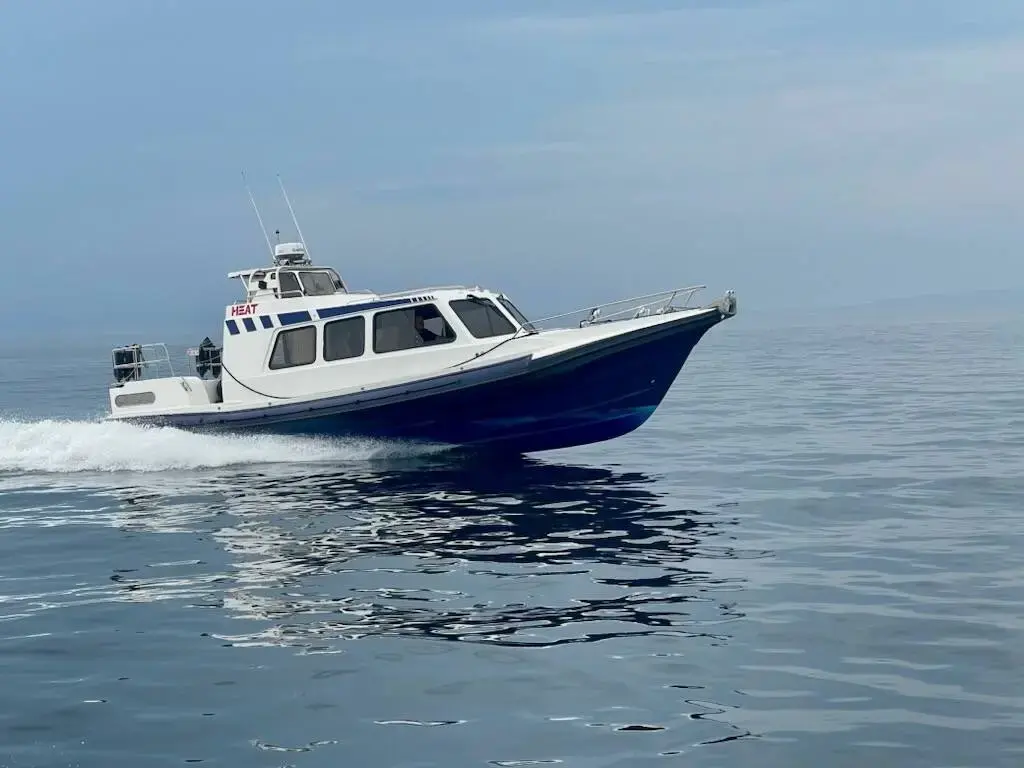

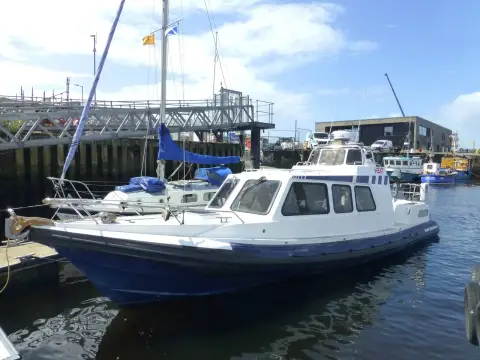

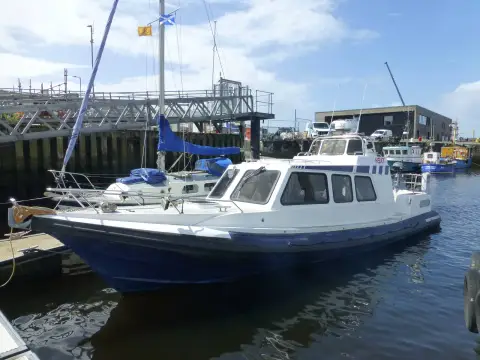

Redbay Stormforce 11

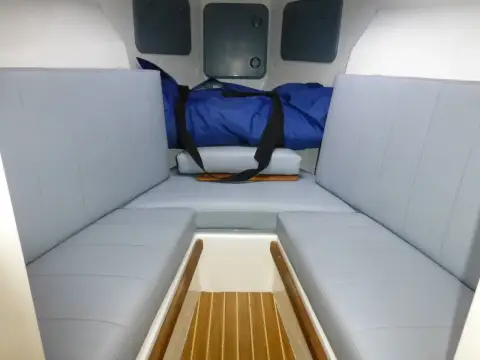

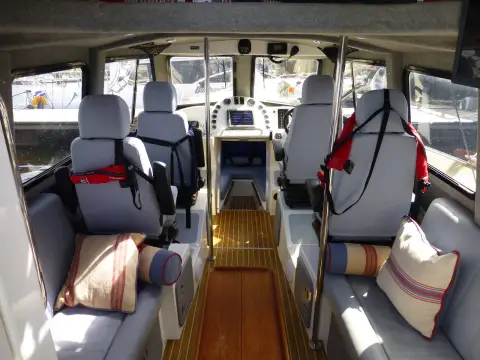

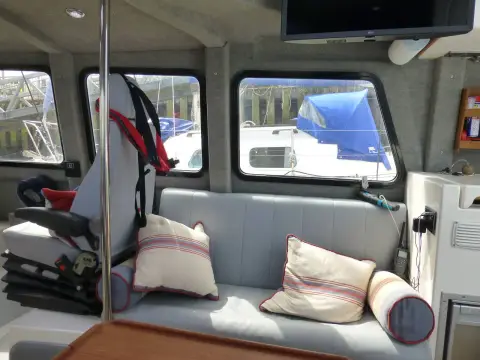

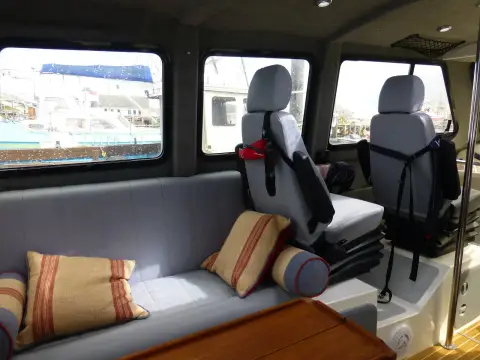

Forward cabin with twin berths and infill cushion, opening deck hatch, chain locker access, storage. Up to wheelhouse cabin with helm seat to starboard, navigators seat to port, further two seats behind to port and starboard and further aft, port and starboard bench seats.

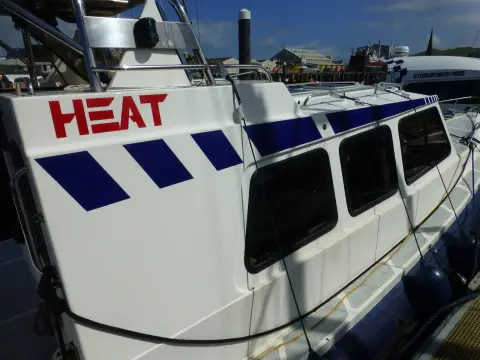

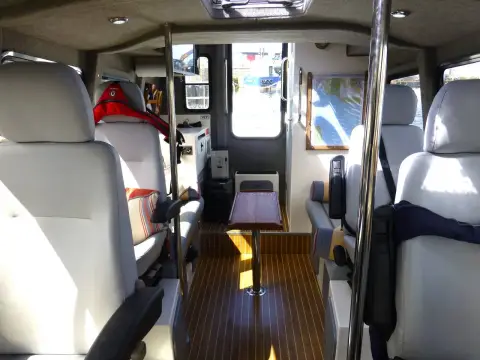

Central dining table with folding leaves, sliding windows to port and starboard, two opening roof hatches, LED lighting throughout, teak and holly floor, Seaglaze® Marine windows and door.

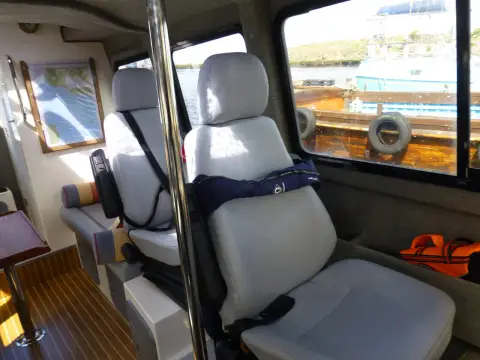

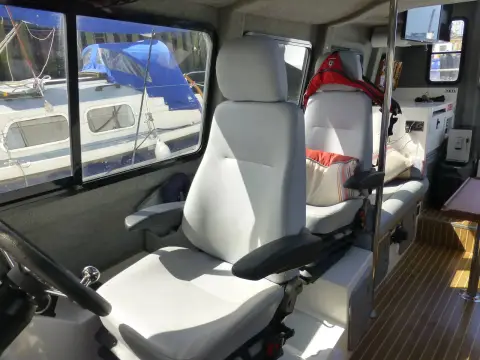

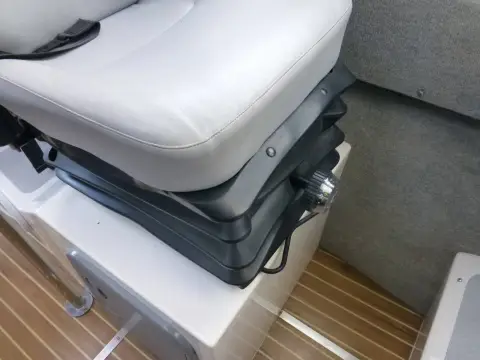

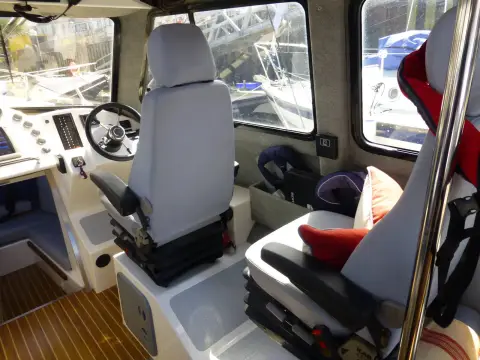

• The four individual seats are adjustable, have suspension, manual weight adjustment, arm rests, head rests and seat belts.

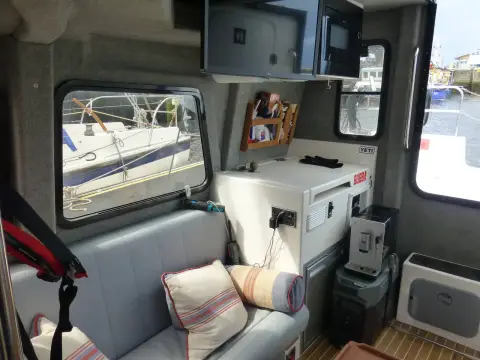

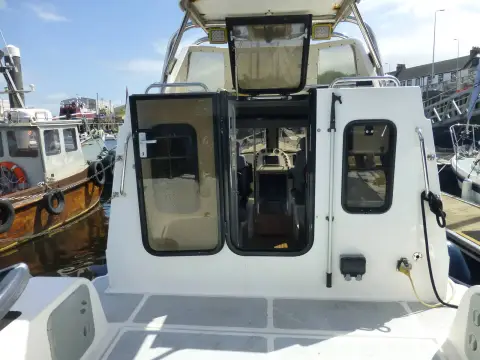

• Galley area to starboard, heads compartment to port, Step up through the door to the cockpit.

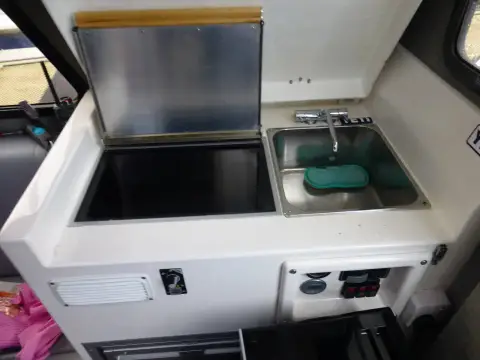

Galley

• Wallas diesel hob with heater
• Sink
• Fridge

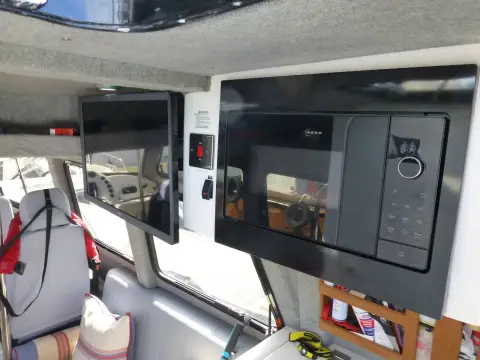

• NEFF microwave
• Hot and cold water system
• Storage
• Opening window

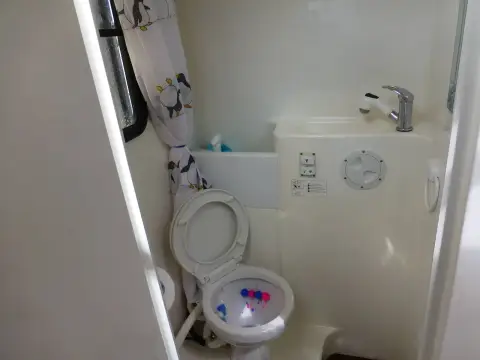

Heads

• Electric sea toilet
• Shower

Mechanical

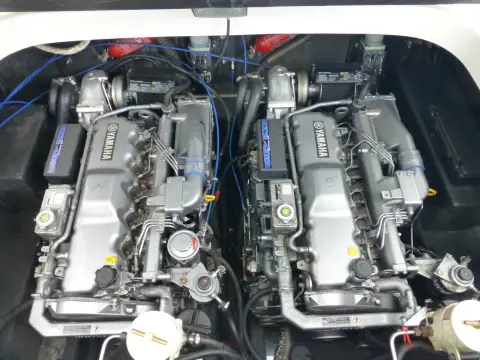

• Twin Yamaha ME432 320hp diesel engines with outdrives

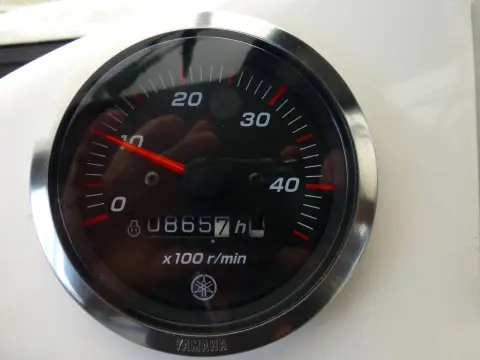

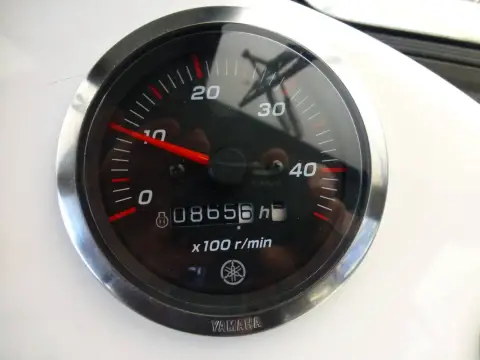

• Engine hours port 865, starboard 865
• Serviced annually, last service 2025
• Electric single hatch to access the engines
• Lenco trim controls
• Engine start batteries 2025
• Domestics batteries 2025
• Shore power socket
• Cockpit power sockets
• Mastervolt Combination 100A invertor/charger
• Mastervolt 12v/10A 24v/5A automatic battery charger
• Victron battery monitor
• Deck emergency beacons
• LED light bar
• Hot water by engine or immerser

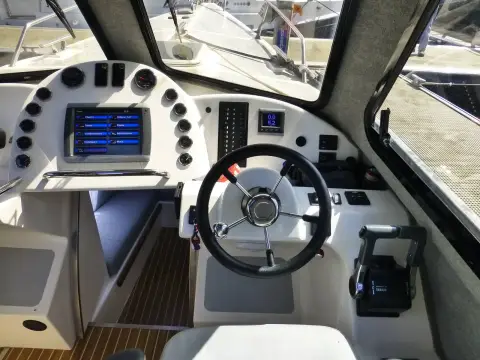

Instruments

• Full engine instruments

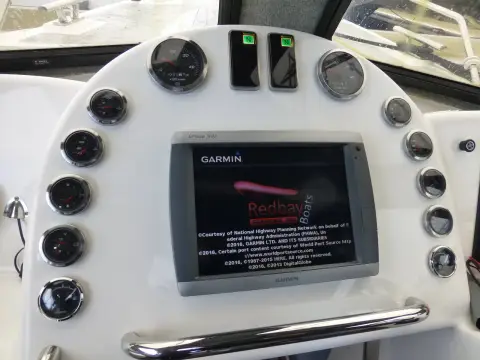

• Garmin GPSmap5012 radar and plotter

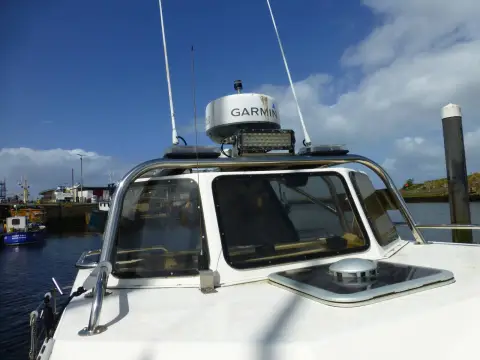

• Garmin radome
• Garmin GHC 10 autopilot
• Garmin GMI 10 speed and depth
• Garmin 100i DSC VHF radio
• Helm compass
• Television
• Sony MP3 CDX HQ1OUI Marine player

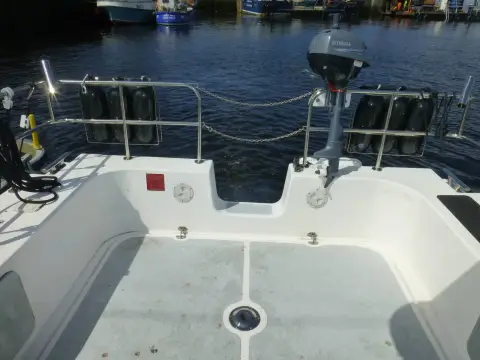

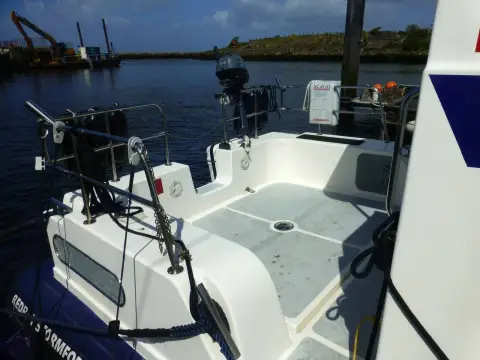

Cockpit

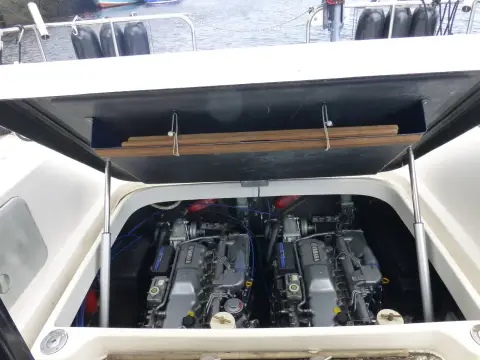

• Engine access via single electric lift floor hatch
• Stainless steel aft rail quarters
• Transom gate
• Step down to aft platform with cleats, snap davits and hand rails

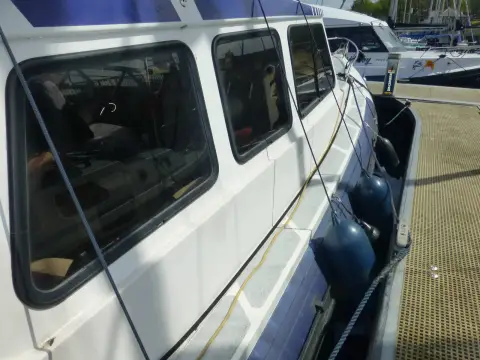

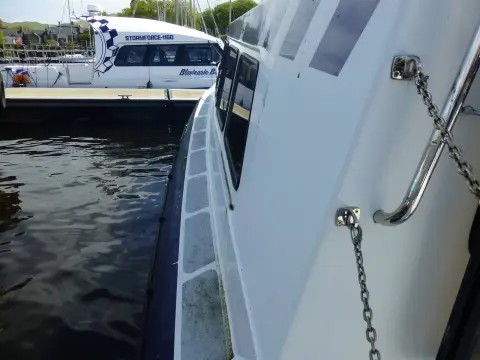

• Access to the side decks
• Two rod holders
• Cockpit deck floodlights
• Wheelhouse table can be mounted in the cockpit
• Cockpit non slip surfaces

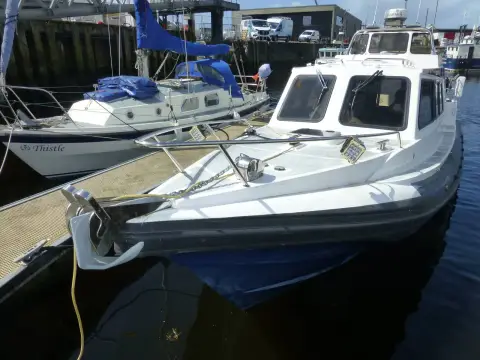

Deck equipment

• Stainless steel pulpit
• Double bow roller

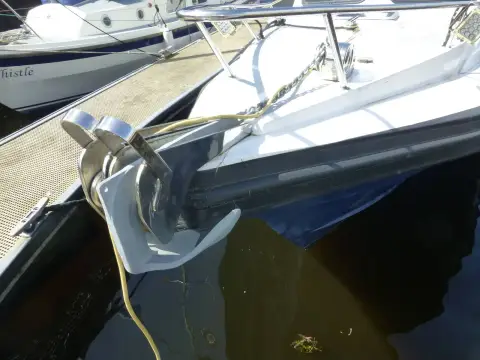

• Bruce type anchor with chain
• Electric anchor windlass with helm control
• Bow LED mooring lights
• Two windscreen wipers

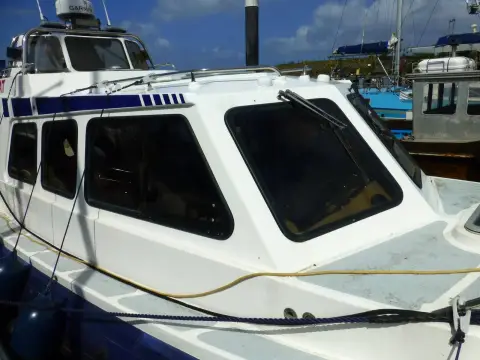

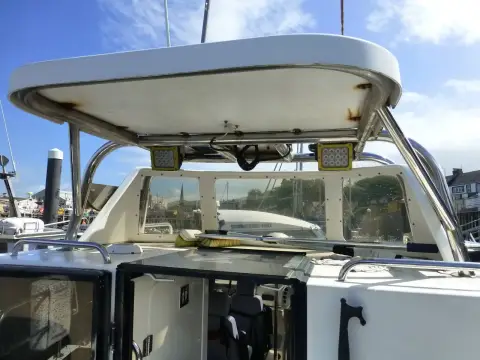

• Stainless steel roof frame, radar, aerials and incorporating the deck windshield
• Outboard bracket
• Stern stainless steel fender baskets
• Dinghy snap davits
• Side fender eyes

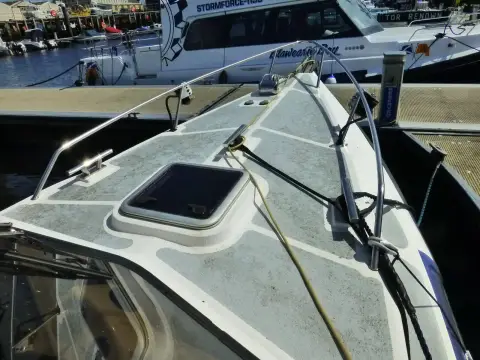

• Deck non slip surfaces
• Various warps and fenders

Safety equipment

• Electric bilge pumps
• Manual bilge pump
• Eight crew liferaft out of service

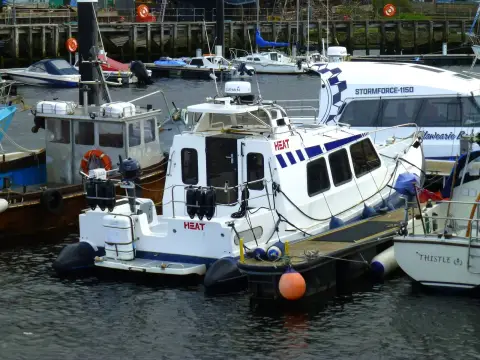

• Liferaft mounted on stern rail
• Seago rescue sling

Additional information

• Yamaha 2.5hp outboard engine included in sale
• Inflatable dinghy included in sale

Redbay Boats description

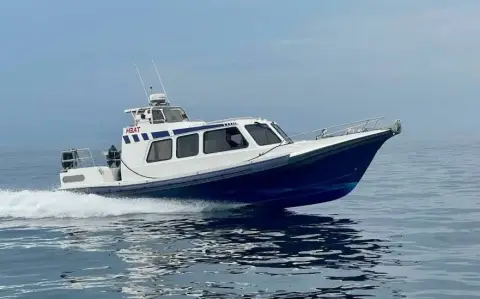

The Stormforce 11 is the flagship in the range, and offers the best that RIBs can offer. The 11 was a natural development from the 9.1, due to customer demand for a larger RIB. Puffin Dive Centre in Oban took the first two boats out of the mould for their operations on the West Coast of Scotland. Since then, the 11 has developed and continued to grow in its popularity; every 11m RIB is unique and customised according to the customers requirements.

The Cabin version is what we would consider the ultimate for offshore cruising. The latest generation is fully decked - truly unique among Ribs The Full GRP Cabin is fitted with Seaglaze toughened marine grade safety windows. In terrible conditions offshore it is reassuring to know that you have the fantastic seakeeping of the 11m hull underneath you, with the safety and comfort of a cabin. Arrive at your destination warm, dry and relaxed, having experienced the joy of what has been termed "the finest RIB available today".

The Stormforce 11 is a deep V hull form, which is one of the reasons that this RIB has such fantastic abilities in rough offshore conditions. The Deep-V hull is combined with sprayrails to produce additional lift and improve the hydrodynamics of the hull. The tube is designed to sit firmly in contact with the water surface while at rest; this ensures that the RIB has maximum stability.

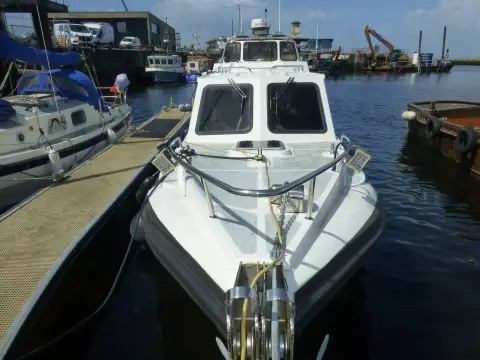

One of the major design features is the Hard Nose. This was developed due to several reasons, and has proven itself one of the most successful features on this design after many years in testing. The Hard Nose is primarily a safety feature. When a RIB such as this is driven hard in a large sea state, there is a real risk that detubing could occur. Thus, the nose is designed to offer complete protection to the tubes when operating in these conditions. Furthermore, there are actually two independent tubes on each side of the hull, offering even greater safety.

The other features of the hard nose are mainly from a practicality need. The GRP nose offers a much more suitable platform from which to anchor or moor, without any problems with damaging the tubes. It also offers much more internal space; this was incorporated into a large dry storage locker, and in most models facilitates twin berths. The RIB can be powered by any propulsion system but is ideally suited to Twin Yamaha Diesel Sterndrive installations.

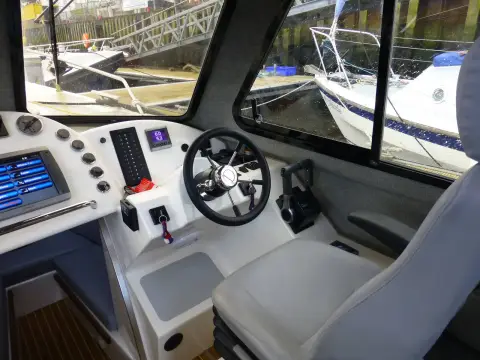

The Explorer Cabin layout is totally customisable to the owners specific requirements. Aft cockpit versions are available if necessary, for example, to fit a wheel chair lift. Similarly, the Cabin can also be shorted to create a large working cockpit if required. Inside, a spacious double berth is fitted in the bow of the RIB. In the main cabin, the controls console is mounted forward, with plenty of space for todays modern navigational equipment. The layout of the rest of the cabin is left to the customer to decide. The typical offshore cruising layout is four KAB Air Sprung Seats and two aft benches. However, a toilet cubicle and galley are also becoming very popular.

At the stern is a dedicated engine compartment, with plenty of space for working around a twin installation. Between the engine compartment and the main cabin, dependent on the version, a large storage locker is provided extending the full width of the vessel. Fitout can be completed with Teak & Holly flooring, and many customers specify custom bespoke Red Cherry paneling and furniture. Decks can be finished with either High Grade Non-Slip surface or Tek-Deck.
